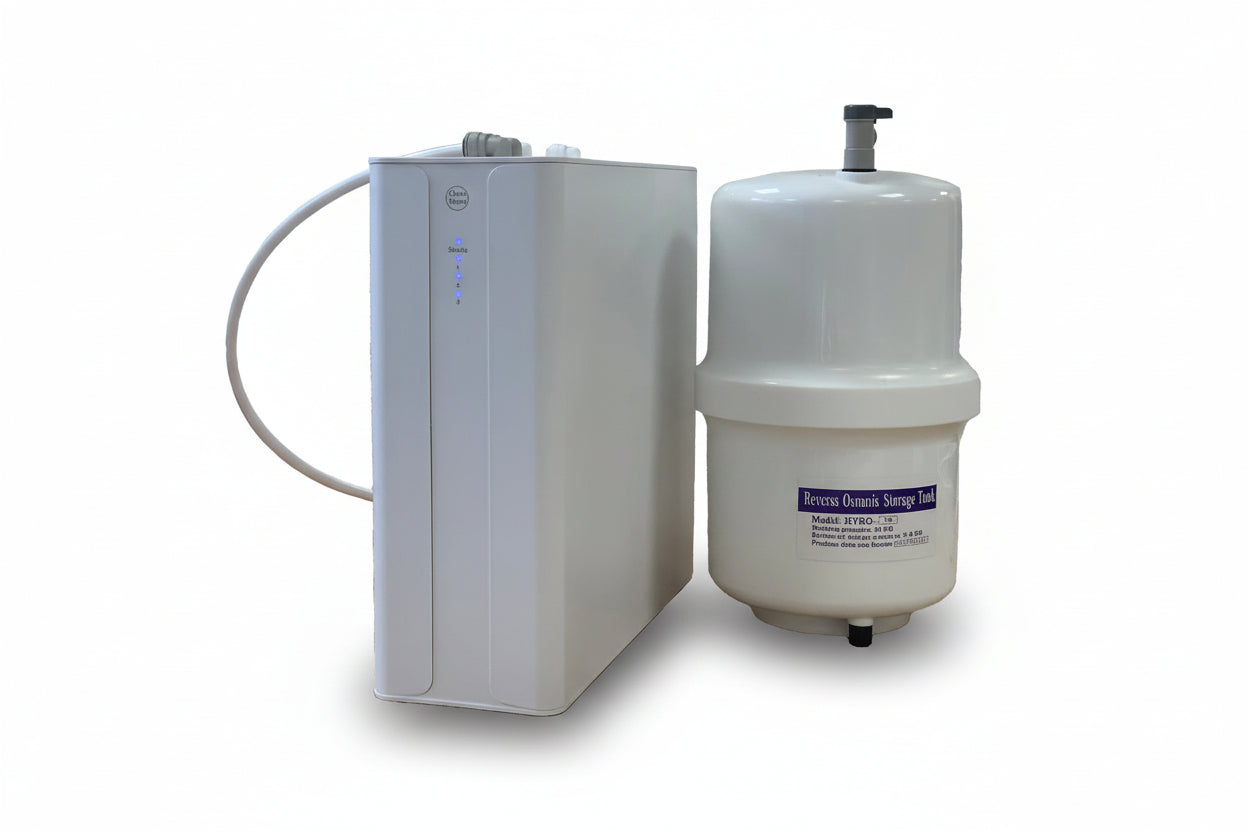

Reverse osmosis (RO) water purifiers are able to produce an amazing level of water purity and remove nearly all contaminants. The Compact 75 RO Water Purifier is a fine example of the technology. The system utilises a high pressure pump and the very latest membrane technology to produce up to 11 litres per hour of Pure Drinking water. Includes a Cartridge life indictor. The use of larger bore pipework for the tap and tank connections ensures the highest flow to tap is available. Easy to change filter cartridges.
Removes approximately 95% of contaminants such as chlorine, lead, fluorides, bacteria and viruses, as well as unpleasant tastes and odours from the water.
Delivers a highly pleasing, fresh tasting drinking water.
Operates on mains water pressure using a semi-permeable membrane. This rejects impurities and washes them down the drain.
The pure water is collected and stored in a tank for use at a later time.
Uses just 1.75 litres of wash water to produce each litre of pure water
High performance carbon block filters as pre and post treatments.
High capacity storage tank holding 4 litres of pure water.
Has automatic shut off when full.
Compact design for under sink installation.
High performance membrane producing up to 7 litres of pure water per hour.
Specifications:
Nominal pure water production rate 11 litres per hour
Minimum / maximum operating temperature 4° to 38° C
Minimum / maximum water pressure 0.5 to 3 bar*
Membrane type Thin film composite (TFC)
Recovery ratio 1.75 to 1
pH range 6 to 9
TDS level No more than 1500mg/l
Water hardness No more than 170mg/l
Pre & post filters Carbon block cartridge / T33
Dimensions of membrane module (W x D x H), including power
supply and elbows 120 x 395 x 340 mm
Dimensions of air charge tank (Dia x H) including valve 195 x 360 mm
Nominal capacity of air charge tank 3.5 litres
Storage tank orientation for installation Vertical or horizontal
Tank refill time 20 minutes
Maximum installation distance possible from membrane to tank 1.5 meters
Pre filter cartridge life 6 months
Post filter cartridge life 12 months
Membrane life Variable – approximately 3 years on soft water**
Warranty (excluding consumables) 1 year
Water flow to tap 3.0 litres/min (max)
Power requirement (supplied with a 24V 2.1 amp transformer) 230V 50Hz
